Air Conditioner Covers

Alumac’s Premium Vortex AC shrouds feature the option to add on SplitStream™, a patent-pending airflow system that stops hot exhaust air being drawn back into your condenser.

All Alumac Air Conditioner Covers are custom manufactured in our Sydney factory to our established design criteria & come with a 10 year Warranty.

10 Year Alumac warranty badge

Conceal Your Air Conditioner with Vortex

BUILT FOR SYDNEY COASTAL CONDITIONS.  DESIGNED TO IMPRESS.

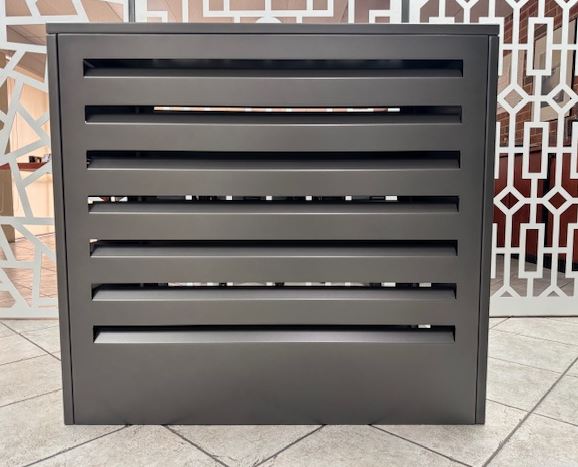

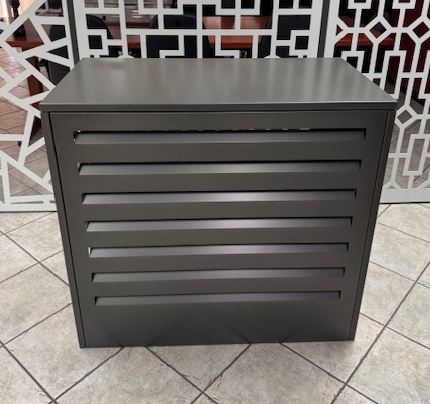

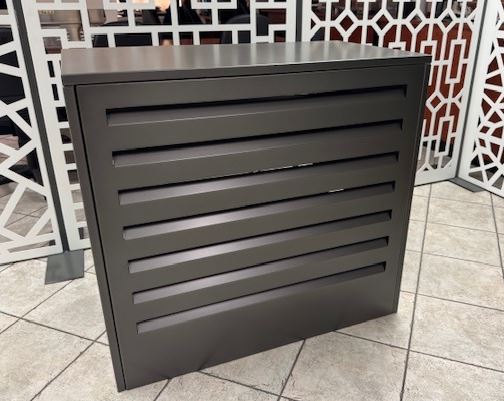

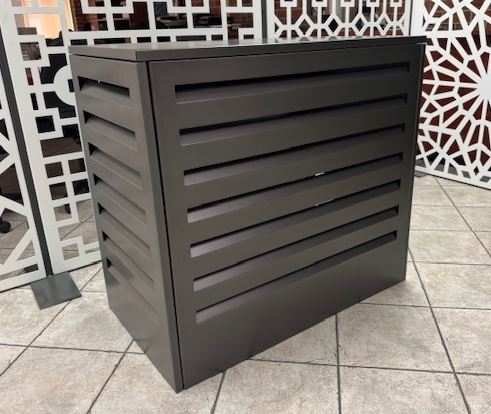

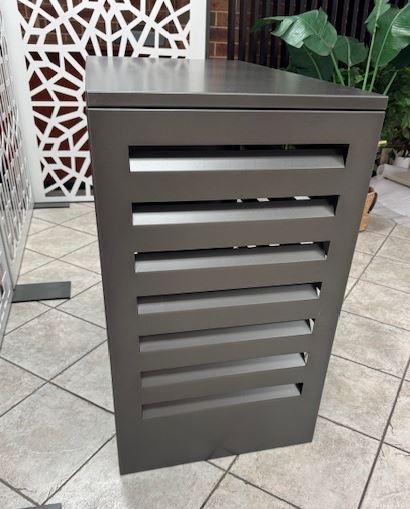

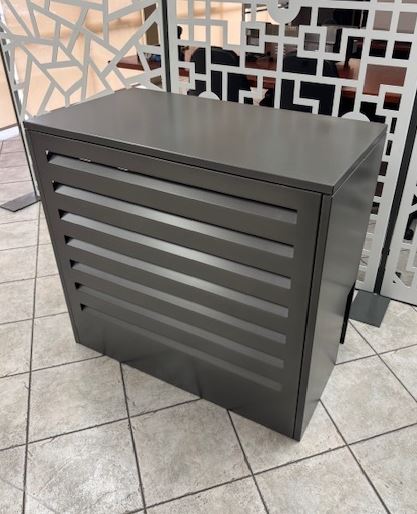

Alumac Vortex is our custom designed and fabricated air conditioner cover featuring:

  • Optional SplitStream™ airflow management system for unique ventilation
  • Vertical or horizontal slats
  • Standard and custom sizes
  • Completely free standing: No structural fixings and no fixings to the condenser
  • Weatherproof aluminium, and durable: powder coated marine-grade aluminium in any colour
  • A stylish and functional use of space that serves to conceal and protect the air conditioner unit
  • Australian made and designed
  • 10 Yr Warranty
  • Delivery Australia-wide

Vortex Selector: Find Your size

Alumac’s Right-Fit Guarantee: Use the Vortex Selector, and if your cover doesn’t fit, we’ll make it right at our cost.

Before and After

Before: The outdoor air conditioning unit takes over the corner of this high-rise balcony and is the first thing you see when you step outside.

After: the same space with a Vortex air con cover fitted. A colour matched powder-coated aluminium shroud keeps air moving freely around the unit and make the balcony feel like part of the living space again.

Before and after air conditioner cover installed on modern balcony.

Standard shroud vs SplitStream™ at a glance

A comparison of a standard air conditioner cover and a SplitStream™ Cover.

 Standard louvred shroudSplitStream™ shroud
Hot and cool airMix freely inside the enclosureKept apart by a sealed plenum
RecirculationOver the top, around the corners and through side gapsBlocked by the perimeter and top seals
Discharge pathWherever the air finds a gapFront louvres only, angled forward and down
Rear wall clearanceOften reduced by the shroud’s back panelUnchanged: shroud sits flush with the condenser, rear left open
Condenser brandsGeneric fit with large gaps, or built for one modelAdjustable frame fits a wide range of brands and sizes
Fixing to the AC unitVariesNone: the seal rests against the unit, protecting the warranty
Service accessOften means removing the whole coverFront panel and frame lift off with quick-release fixings
DrainageVariesOpen base drains defrost water and condensate

Standard Sizes

Below are our standard AC Shroud size options that accommodate ~85% of all air conditioner condensers in the 4kw to 10kw range. We also manufacture custom sizes if yours doesn’t fit a standard size. Contact our team to order yours.

Size External L External H External D
Size 1 1120 mm 750 mm 550 mm
Size 2 1220 mm 850 mm 550 mm
Size 3 1250 mm 1000 mm 550 mm
Size 4 1250 mm 1100 mm 550 mm

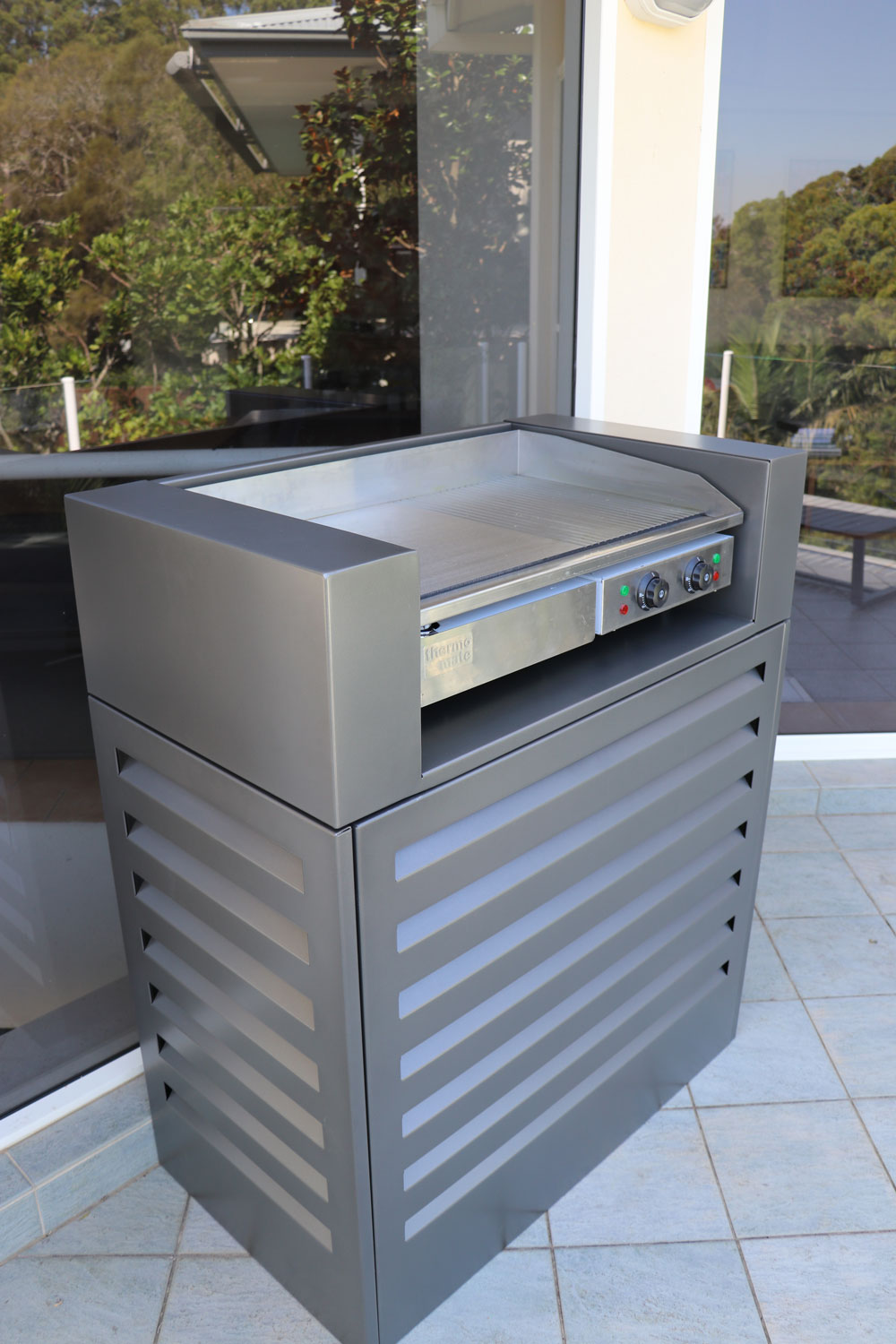

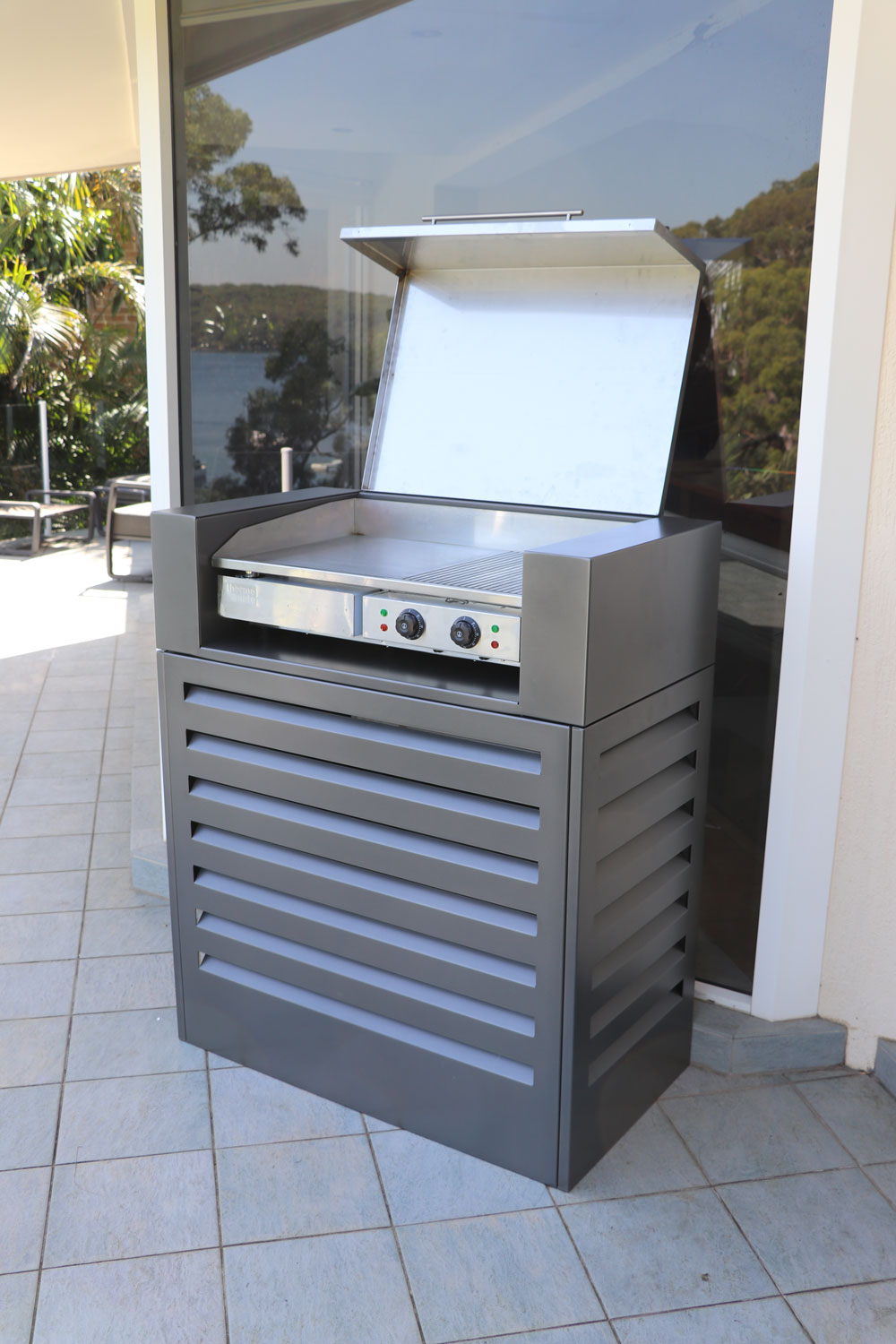

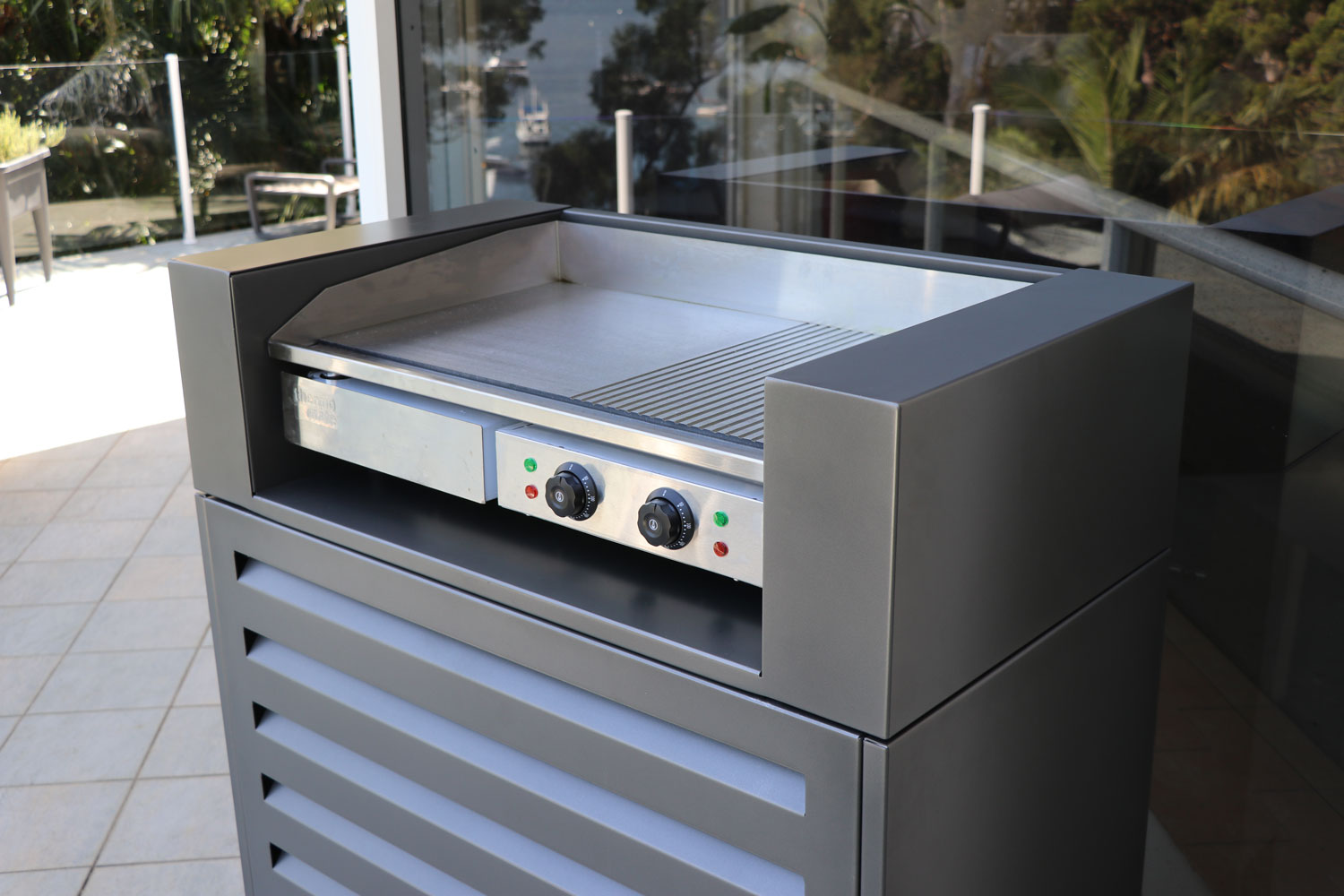

Custom designed and fabricated air conditioner covers, including the option to utilise the space above the unit to include a built in electric BBQ.

Powder coated in a colour to perfectly match your existing décor, the result is a stylish and functional use of space that serves to conceal and protect the air conditioner unit.

Read a case study on our blog.

Functional Use of Space

Aircon covers are an easy way to maximise and diversify space usage while covering the air conditioner unit. If you live in a unit or apartment where balcony space is limited, the cover can offer a solution to combining the bbq and and air conditioner shroud all in one.

Stylish Aluminium Air Conditioner Covers – Designed to Hide and Protect

If you’re tired of looking at an unsightly outdoor air conditioning unit, Alumac’s air conditioner covers offer the perfect blend of function and design. Each air con cover is custom-made from high-grade aluminium and finished in your choice of colour through our in-house powder-coating line, allowing us to colour-match to any façade or balcony scheme.

Built for Australian conditions, our air con unit covers are durable, rust-resistant and ideal for coastal environments where corrosion is a concern. Unlike cheaper steel or plastic options, Alumac’s aircon covers are a long-term investment — protecting your unit while enhancing the appearance of your property.

Perfect for high-rise buildings, strata developments, and apartments, these AC unit covers help maintain visual harmony across façades and balconies, meeting body corporate requirements for uniformity and presentation.

Whether for a home, apartment, or commercial building, our aluminium air conditioner covers elevate the space — turning a necessary utility into an architectural feature. In a property market where every detail counts, it’s worth investing in the look, protection, and longevity of your exterior.

Custom made. Coastal ready. Built to last.

Frequently Asked Questions

Can I hide my outdoor air conditioner unit?

Yes. Alumac’s air conditioner covers are designed specifically to conceal outdoor AC units without restricting airflow. They transform a bulky, unattractive unit into a sleek architectural feature that blends seamlessly with your balcony, courtyard, or façade.

Are air con covers safe for my air conditioner?

Absolutely. Each air con unit cover is engineered for ventilation and performance. The aluminium slatted design with optional SplitStream™ airflow system ensures efficient airflow while protecting your system from direct sunlight, rain, and debris, potentially helping to extend the life of your unit.

Can you colour match the air con cover to my building?

Yes. With our in-house powder-coating line, we can colour match your aircon cover to any Dulux or Colorbond colour, ensuring consistency across your property or apartment complex. Perfect for body corporates, builders, and homeowners seeking a cohesive exterior look.

Why choose aluminium for my AC unit cover?

Aluminium is lightweight, durable, and corrosion-resistant, ideal for coastal environments where rust is a problem. It’s a premium, long-term investment that enhances property appearance while protecting your system from damage.

Do you make a version with a BBQ Kitchen over the AC unit?

Yes. Building a balcony kitchen? Our AC cover product with kitchen is called the VistaGrille Nexus AC Shroud Kitchen, and has an integrated AC shroud. You can design and order yours online at the VistaGrille website, or we can build a custom one for you to suit your AC Unit.

Benefits

Weather Protection

Lightweight

Choose Your Colour

Corrosion Resistant

Durable & Unique Design
